Material and Construction
Manufactured using premium-grade mild steel and coated with copper, these rods ensure excellent
conductivity, durability, and resistance to corrosion. The advanced formulation enables smooth
arc stability and rapid cutting through a wide range of materials, including ferrous and
non-ferrous metals, stainless steel, cast iron, rock, marine growth, concrete piles, and coral.
The rods are available in multiple sizes to suit different underwater applications, with the
standard dimension being 3/8” x 18” long.

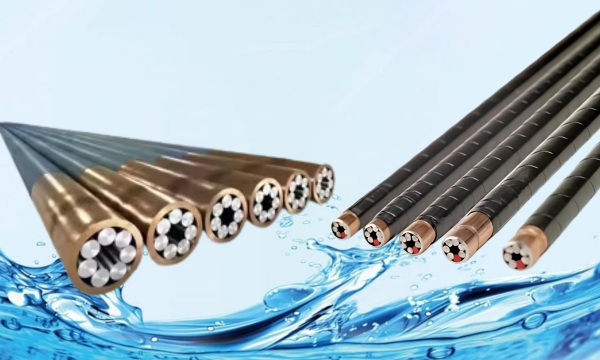

BROKO™ Underwater Cutting Rods
| Size (Inches) |
Size (mm) |
Length |
Quantity per Box |
| 3/8" |
9.5 mm |
18 inches |
66 pcs. |
BROKO™ Underwater Wet Welding Rods
| Size (mm) |
Length |
Quantity per Box |
| 3.15 mm |
450 mm |
95 pcs. |
| 4 mm |
450 mm |
69 pcs. |
| 5 mm |
450 mm |
48 pcs. |
| Under Water Welding Cutting Rods - Price &
General Specifications |
| Product Type |
Cutting Rods / Under Water Welding Cutting Rods |
| Usage Details (Dual-Purpose) |
- Cutting: Ferrous & Non-Ferrous Metal, Stainless Steel,
Rock, Marine Growth, Concrete Pile, Cast Iron, Coral, Mastic, Rope.
- Welding: Mild steel, Stainless Steel, and Non-Ferrous
metal.
|
| Target Sector |
Industrial (Supplying to INDIAN NAVY, ONGCS contractors, etc.) |
| Size (Specified) |
$\frac{3}{8}$" x 18" long (Different sizes also available) |
| Length |
18 inches and above (Meter (m) conversion not specified for all) |
| Weight (Box/Pack) |
18.5 kgs Kilograms (kg) |
| Color |
Black Copper |
| Condition |
New |
| Motor Type |
DC Motor (Implies required power source type) |
| Supply Ability |
5000 Per Month |
| Delivery Time |
7 Days |
| Main Domestic Market |
All India |
| FOB Port |
Ex-our works |
| Payment Terms |
Cash in Advance (CID) |
| Sample Policy |
Within a certain price range free samples are available (Sample Available: Yes)
|
Technical Specification: Oxygen Delivery Pressure for Depth
(Table 1)
| Depth |
Pressure Gauge Setting |
| Ft. |
M |
PSI G |
BAR |
| 33 |
10 |
108 |
7.4 |
| 40 |
12 |
112 |
7.6 |
| 50 |
15 |
117 |
8.0 |
| 60 |
18 |
123 |
8.4 |
| 70 |
21 |
128 |
8.7 |
| 80 |
24 |
134 |
9.1 |
| 90 |
27 |
139 |
9.5 |
| 100 |
30 |
145 |
9.9 |
| 110 |
34 |
150 |
10.2 |
| 120 |
37 |
155 |
10.5 |
| 130 |
44 |
161 |
11.0 |
| 140 |
43 |
166 |
11.3 |
| 150 |
46 |
172 |
11.7 |
| 160 |
49 |
177 |
12.0 |
| 170 |
52 |
183 |
12.5 |
| 180 |
55 |
188 |
12.8 |
| 190 |
58 |
194 |
13.2 |
| 200 |
61 |
199 |
13.5 |
| 210 |
64 |
204 |
13.9 |
| 220 |
67 |
210 |
14.3 |
| 230 |
70 |
215 |
14.6 |
| 240 |
73 |
221 |
15.0 |
| 250 |
76 |
226 |
15.4 |
| 260 |
79 |
232 |
15.8 |
| 270 |
82 |
237 |
16.1 |
| 280 |
85 |
243 |
16.5 |
| 290 |
88 |
248 |
16.9 |
| 300 |
91 |
254 |
17.3 |
| 310 |
94 |
259 |
17.6 |
| 320 |
98 |
270 |
18.4 |
| 330 |
101 |
275 |
18.7 |
| 340 |
104 |
281 |
19.1 |
| 350 |
107 |
286 |
19.1 |
Technical Specification: Amperage Setting for Cable Size
(Table 2)
| Length of Power Cable (Supply to Work Distance)
|
Amperage Setting for Cable Size |
| Ft. |
M |
#1/0 |
#2/0 |
#3/0 |
| 150 |
46 |
155 |
152 |
150 |
| 200 |
61 |
157 |
154 |
152 |
| 250 |
76 |
159 |
156 |
154 |
| 300 |
91 |
161 |
158 |
156 |
| 350 |
107 |
163 |
160 |
158 |
| 400 |
122 |
165 |
162 |
160 |
| 450 |
137 |
167 |
164 |
162 |
| 500 |
125 |
169 |
166 |
164 |
